Truck Mounted Crane Manufactures: The Perfect Combination of Lifting and Transportation

Knuckle Boom Cranes: Compact and Flexible for Tight Spaces

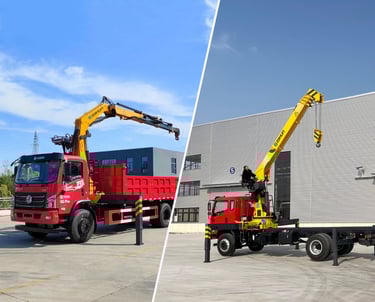

Knuckle Boom Truck Mounted Cranes Featuring a multi-jointed folding boom design, our knuckle boom cranes offer exceptional maneuverability in confined spaces, making them ideal for urban construction, indoor installations, and other applications with limited access. They excel at navigating obstacles.

Telescopic Boom Cranes: The Ideal Choice for Efficient, Wide-Range Operations

With a telescopic boom design, these cranes provide extended reach and greater lifting heights, making them perfect for large construction sites, bridge building, aerial work, and other demanding applications.

Truck Mounted Crane Brochures: Knuckle & Telescopic Boom Models

Need detailed information on our knuckle boom cranes or telescopic boom cranes? Download our comprehensive brochures for complete specifications, dimensions, and capabilities of each truck mounted crane model. Get your copies today!

KNUCKLE CRANE BROCHURE

TELESCOPIC CRANE BROCHURE

Latest Projects Featuring Our Truck Mounted Cranes

We extend our sincere appreciation to our partners for their invaluable trust and the opportunities to contribute to their success. Every truck mounted crane we deliver, from versatile knuckle boom cranes to powerful telescopic cranes, embodies our commitment to exceptional engineering, reliable performance, and providing innovative lifting solutions tailored to your specific needs. We are honored to be your chosen provider for robust vehicle mounted cranes.

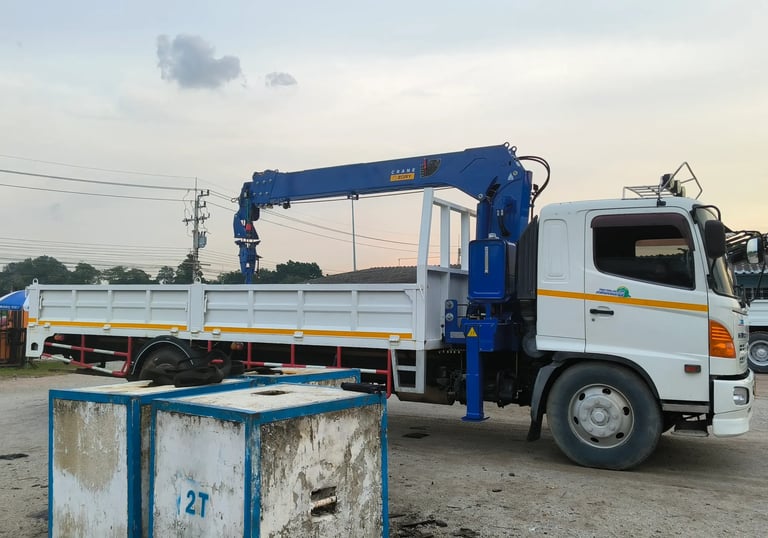

SQS125-5G 5Ton Truck Mounted Crane

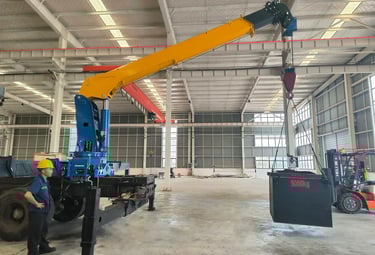

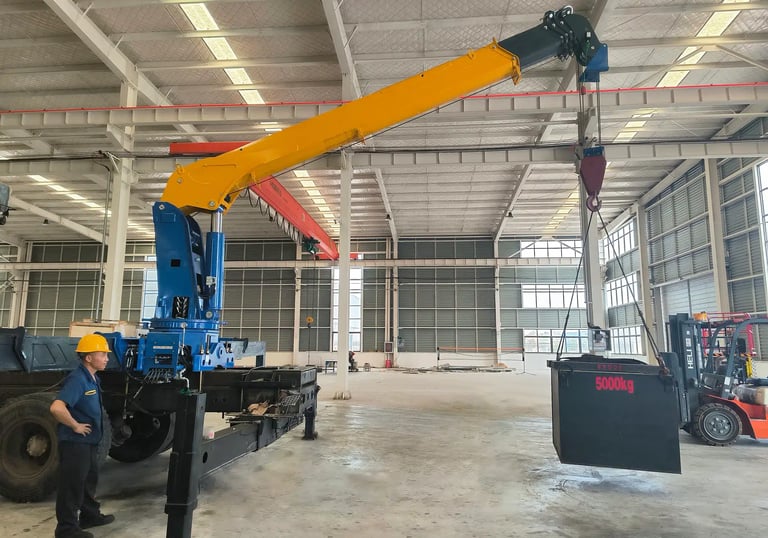

SQS200-5G 8Ton Truck Mounted Crane

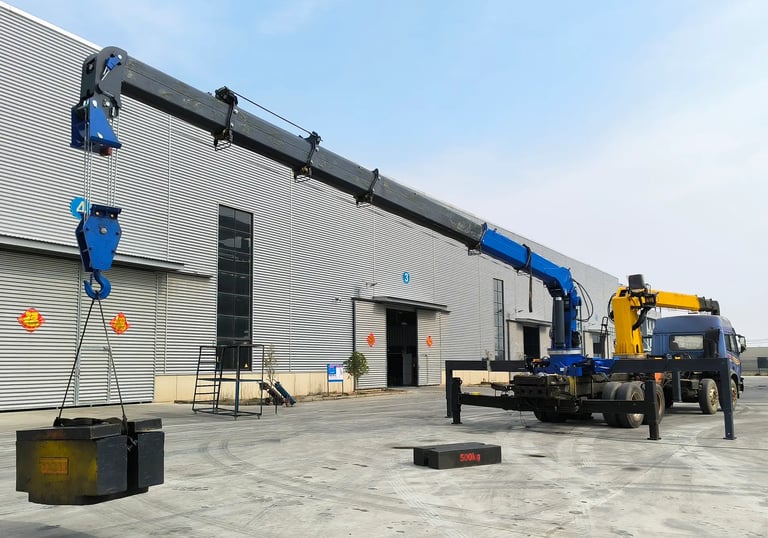

SQS250-5G 10Ton Truck Mounted Crane

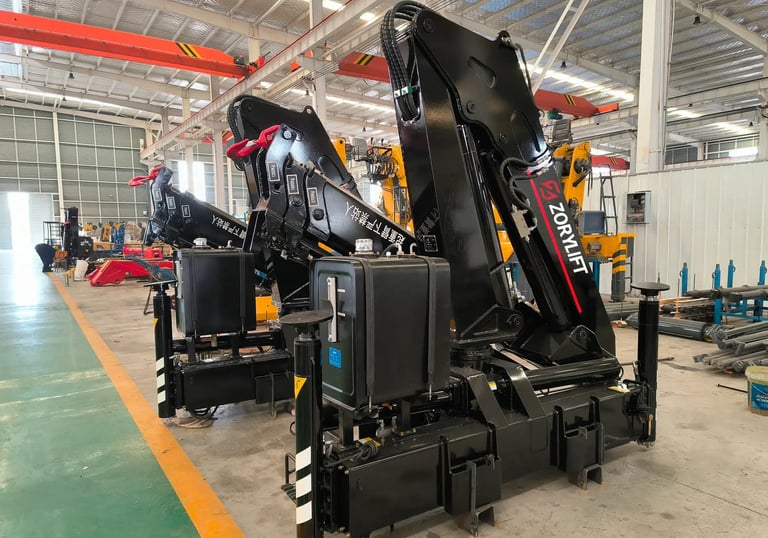

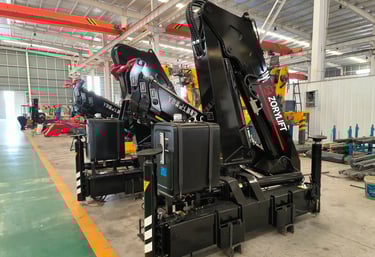

SQZ132.2A 6.3Ton Lorry Mounted Crane

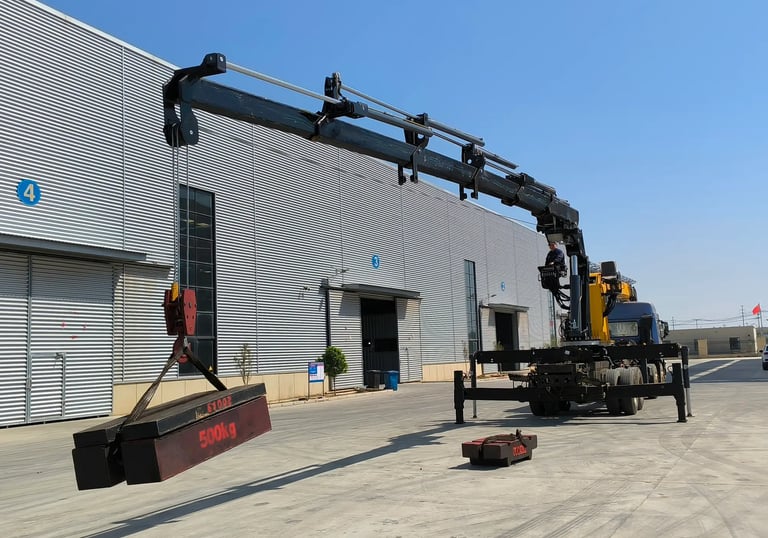

SQZ300.5A 15Ton Lorry Mounted Crane

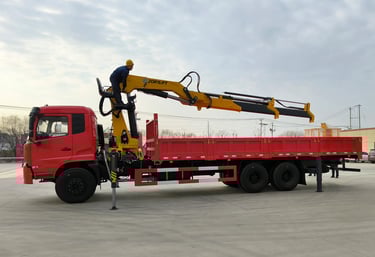

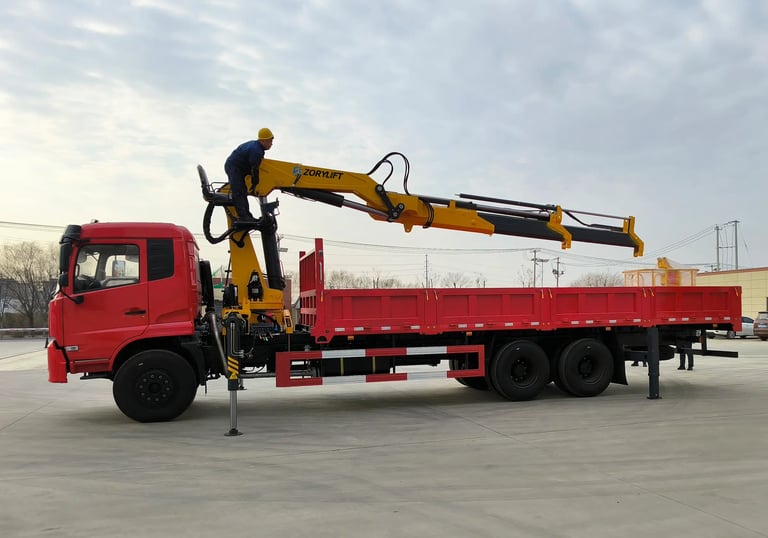

SQZ350.4A 16Ton Lorry Mounted Crane

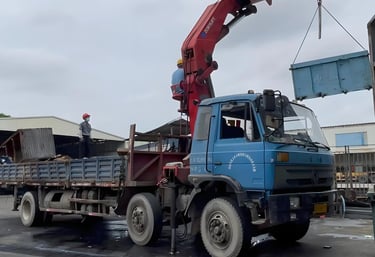

ZORYLIFT Truck Mounted Crane: Global Application Examples

ZORYLIFT knuckle boom crane and telescopic boom crane deliver reliable support across diverse global industries. From construction and logistics to landscaping t, our engineering machinery enhances operational efficiency and safety. View real-world examples demonstrating the proven performance and adaptability of our lorry mounted cranes.

South Africa

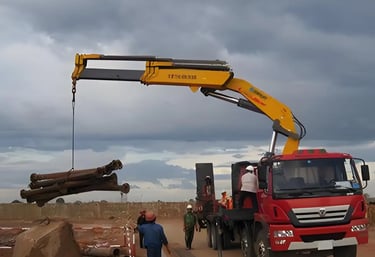

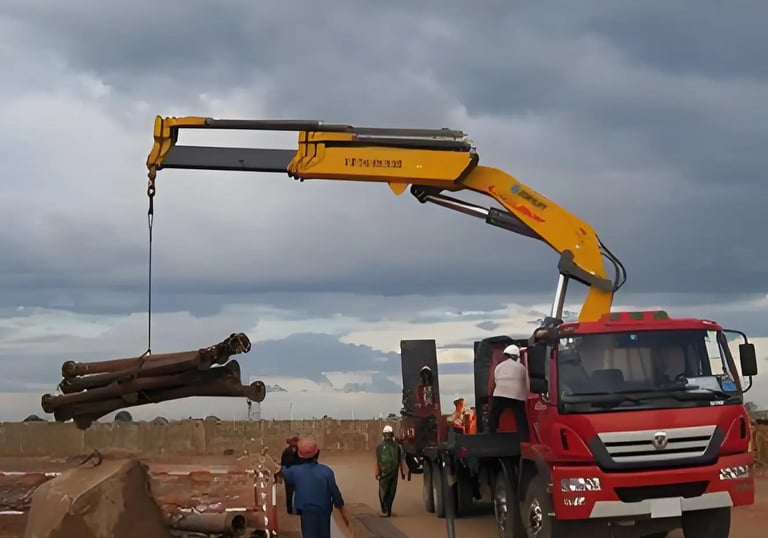

Our SQZ200A.4 10-tonne knuckle boom crane undertaking lifting operations at a construction site.

China

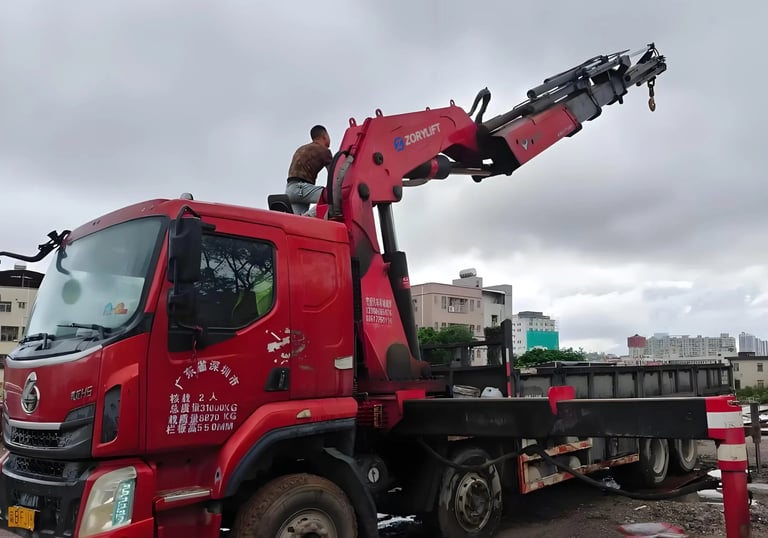

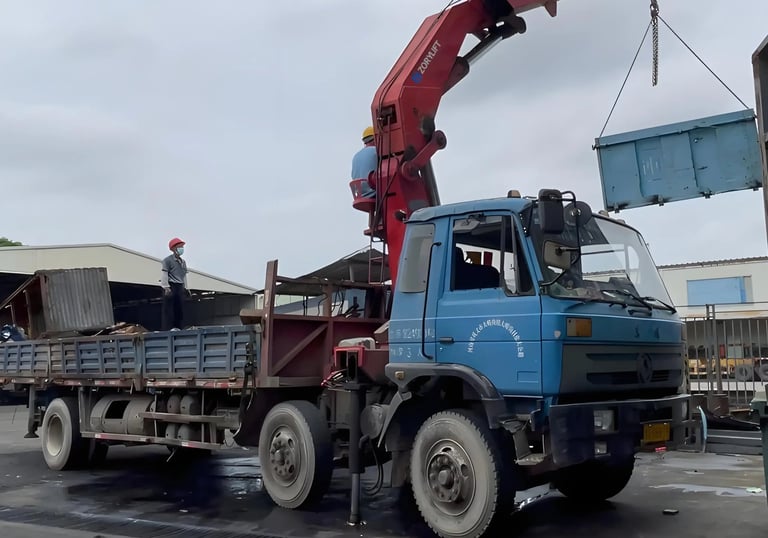

A logistics company utilising the SQZ350A.5 15-tonne knuckle boom crane for cargo lifting operations.

Our SQZ160A.3 8-tonne knuckle boom crane is being utilised for lifting and loading factory equipment for transport.

Vietnam

Thailand

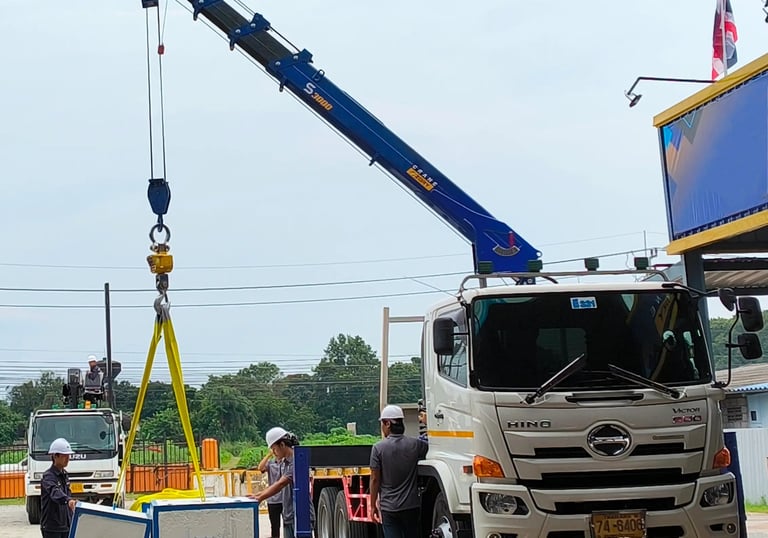

A client is conducting a load test using our SQS80A-4 3.2-tonne telescopic boom crane.

Brazil

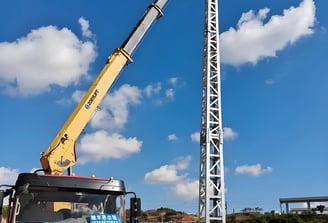

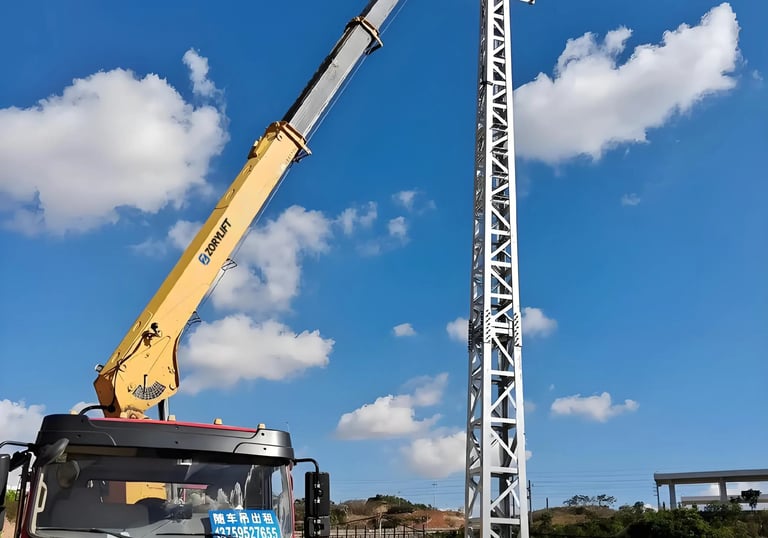

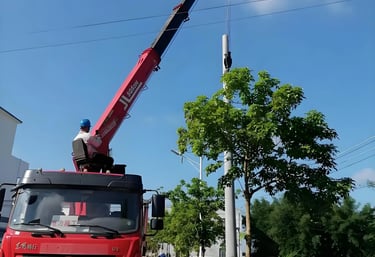

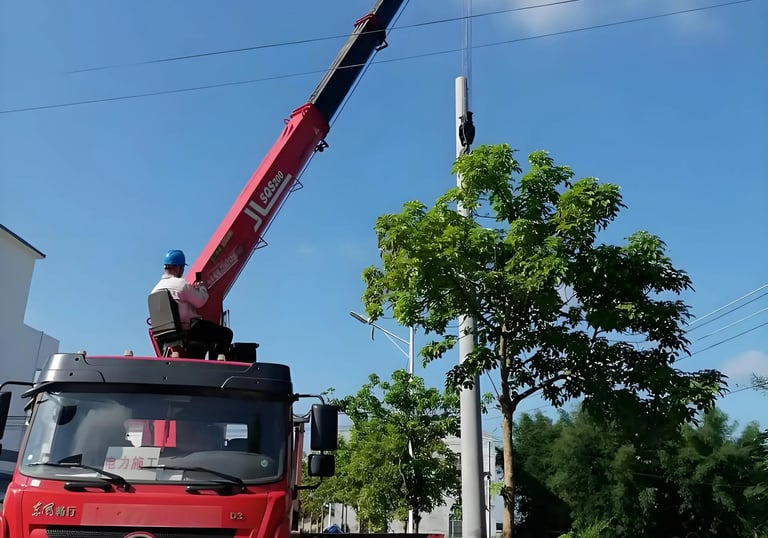

Our SQS250A-4 10-tonne telescopic boom crane is being utilised for the installation of electricity pylons, supporting local infrastructure development.

Our SQS200G-4 8-tonne telescopic boom crane is utilised for tree lifting in a Malaysian landscaping project.

Malaysia

15+

Truck Mounted Crane Industry Experience

Your Trusted Truck Mounted Crane Manufacture

With over 15 years of dedicated expertise, we are a leading lorry mounted crane manufacturer. Our state-of-the-art production facility and rigorous quality control ensure every loader crane meets the highest standards of performance and safety. We deliver reliable crane solutions globally. Explore our core strengths demonstrated by the figures below.

25000+

Modern Manufacturing Facility

495+

Annual Production Loader Crane Capacity

Follow us

Zory's Promise: Worry-Free After-Sales Service and Full Support

We not only provide high-quality truck mounted crane products, but also provide comprehensive after-sales service and technical support, so you can buy with confidence and use with peace of mind!

Spare Parts Supply

1-year warranty, we provide original factory parts supply to ensure your equipment can be repaired promptly and reliably.

Online Support

We offer online technical support, and you can contact us through various channels such as phone, email, and WeChat to get timely help.

We promise to respond quickly after receiving your service request and solve your problem in a timely manner.

Rapid Response

Customization Options for Truck Mounted Cranes

At Zory, we understand that every customer has unique needs for their truck mounted crane. In addition to our standard models, we offer a wide range of customization options to tailor your equipment to your specific application scenarios, achieving higher operational efficiency and safety. From remote control operation to multifunctional attachments, Zory creates a personalized lifting solution for you.

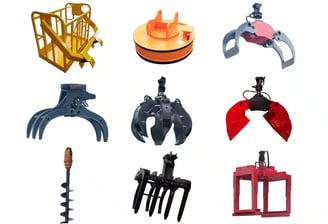

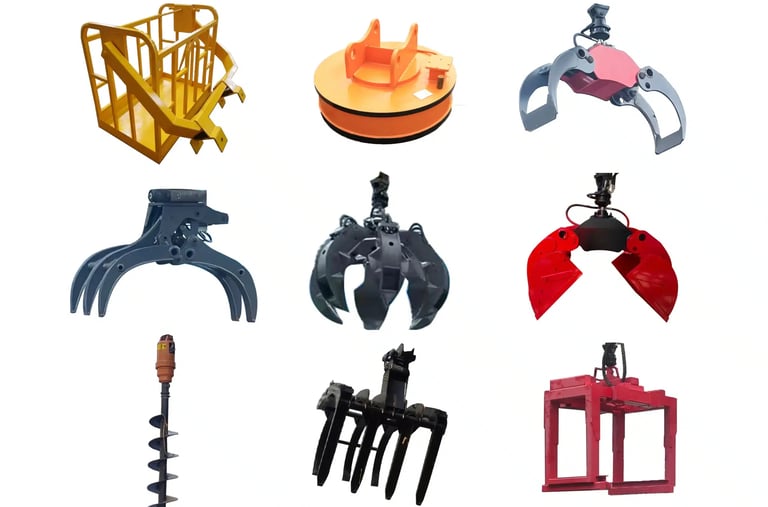

Multifunctional Attachments

Grabs: suitable for loading and unloading bulk materials. For instance, timber cranes frequently utilize grabs for handling wood, while other applications include scrap steel, garbage, and more
Baskets: Used for working at heights, such as street lamp maintenance, exterior wall cleaning, etc.
Clamps: Suitable for lifting pipes, profiles and other objects.
Augers: Used for drilling operations, such as tree planting, piling, etc.
Others: Special attachments can be customized according to customer needs.

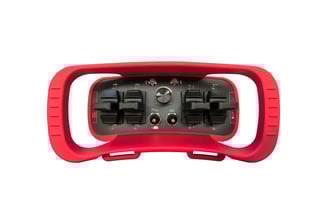

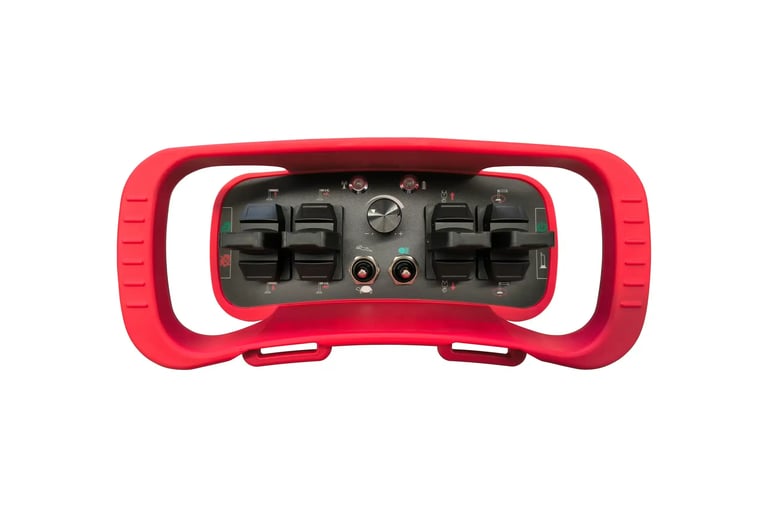

Wireless Remote Control System

Say goodbye to traditional operation methods and choose Zory's radio controlled crane or RC crane system, allowing you to easily control the truck mounted crane from a safe distance. Improve operational accuracy and safety, especially suitable for complex or dangerous working environments.

• Advantages: Enhanced safety, more precise operation, wider field of view.

• Application Scenarios: Construction sites, power emergency repairs, confined space operations.

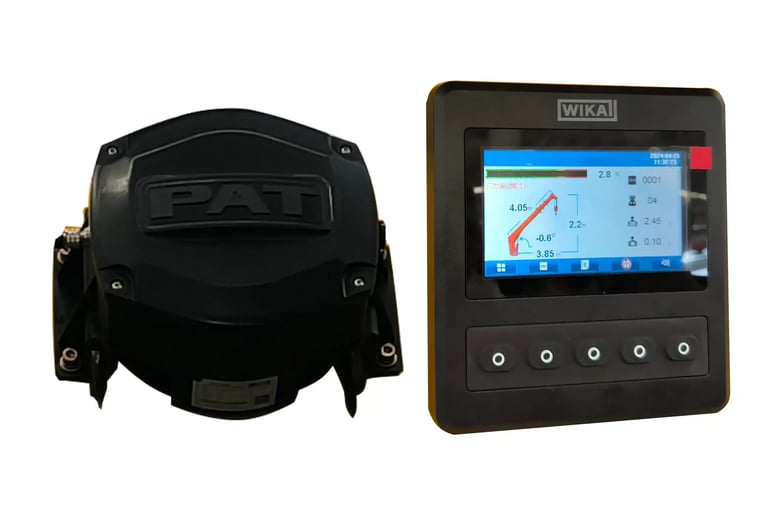

Load Moment Indicator - LMI

To ensure the operational safety of your truck mounted crane, Zory offers the Load Moment Indicator (LMI) as an optional feature, also known as Rated Capacity Indicator (RCI) or Safe Load Indicator (SLI). The LMI system monitors the boom angle, load weight, working radius, and extension in real-time, issuing warnings when approaching or exceeding the rated lifting capacity, effectively preventing overloading and tipping accidents and ensuring personnel and equipment safety.

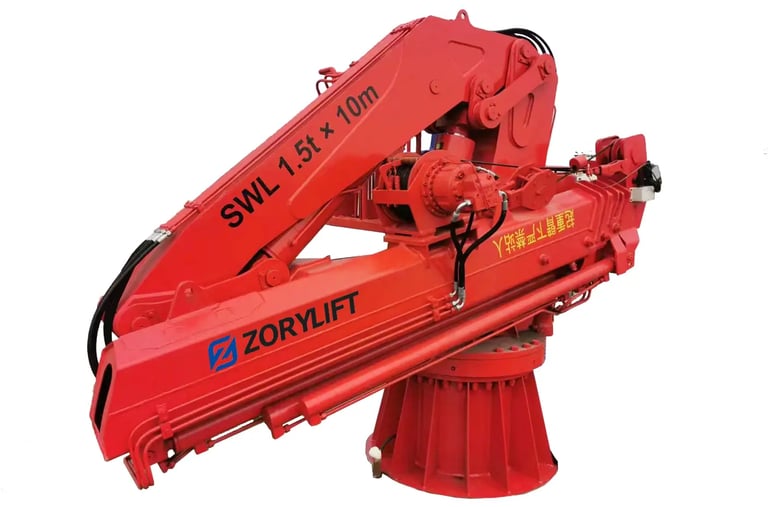

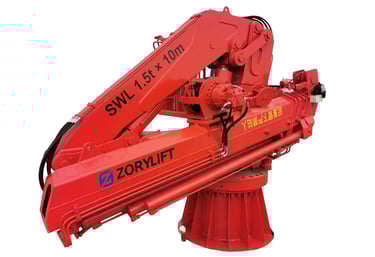

Special Customization

If you have other special requirements, such as specific colors, sizes, explosion-proof requirements, etc., please let us know. Zory's engineering team will be dedicated to providing you with a personalized truck mounted crane customization plan.

Customization process: Submit requirements -> Plan design -> Confirm the plan -> Manufacturing -> Delivery and acceptance

Why Choose a Zorylift Truck Mounted Crane?

Engineered for superior durability and precise control. Each crane features a high-strength steel structure, a unique polygon boom for stability, trusted Parker hydraulics for power, and a rugged 3-layer coating for ultimate protection.

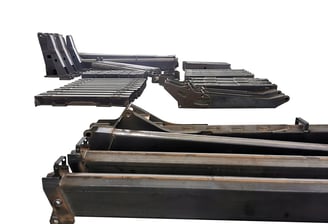

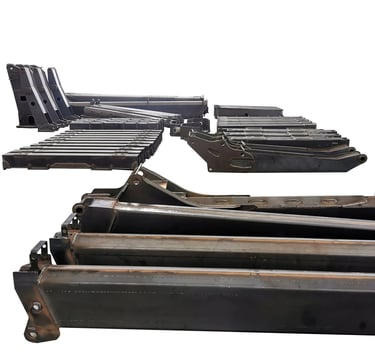

High Strength Plates

Each Zory truck mounted crane is built from high-strength steel for maximum durability, ensuring reliable performance in the toughest conditions. Whether for a crane lorry or loader crane, we provide a trusted lifting solution.

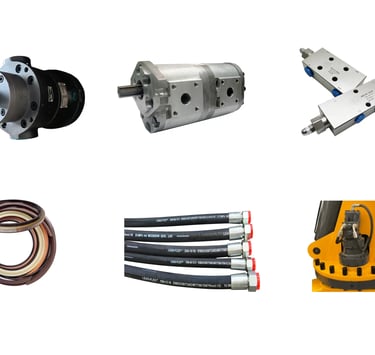

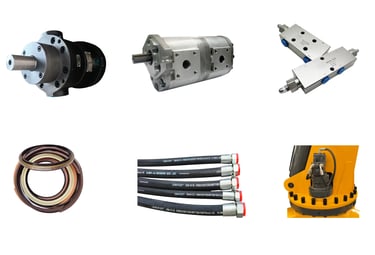

Hydraulic Systems

Our industry-leading hydraulic system ensures smooth and precise control. It uses Parker-standard hoses and XCMG-grade valves for proven reliability, whether for a telescopic boom or a knuckle boom crane.

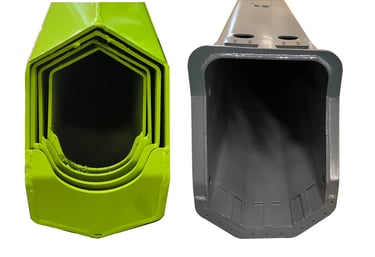

Our unique polygon boom design increases load capacity and stability while reducing the crane's overall weight. To ensure a secure workplace, we integrate multiple advanced safety features into every unit.

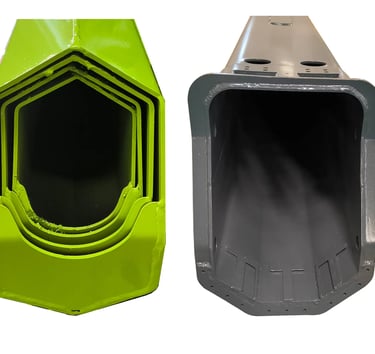

Polygon Boom

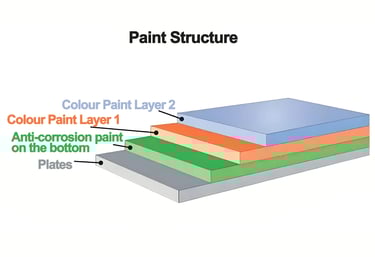

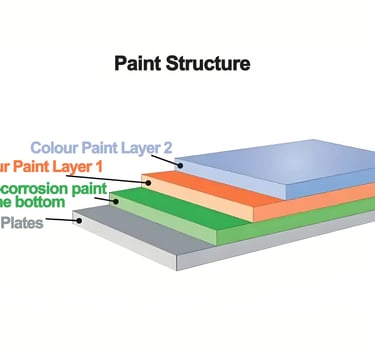

3 Layers of Paint

Our advanced two-coat paint system offers superior corrosion protection. Layer one is a zinc-rich epoxy primer for rust prevention; layer two is a polyurethane topcoat for excellent weather and abrasion resistance.

How Choose ZORYLIT Truck Mounted Crane？

Are you overwhelmed by the numerous truck mounted crane models and specifications? Don't worry, Zory is here to provide a detailed explanation of the key parameters in our product catalog, helping you easily choose the crane that best suits your needs!

Working Radius/Reach

Refers to the maximum horizontal distance from the center of the crane boom to the center of the hook. The larger the working radius, the wider the working range of the crane.

Installation Space

Refers to the amount of space required to install the crane. You need to consider whether the installation space is sufficient when choosing a crane.

Max. Lifting Weight

This is the primary consideration when choosing a truck mounted crane. It refers to the maximum weight that the crane can safely lift under specific working conditions. You need to choose the appropriate lifting weight based on your actual lifting needs.

Knowledge Base

Outrigger Span

The distance between two outriggers when they are fully extended. The larger the outrigger span, the better the stability of the crane.

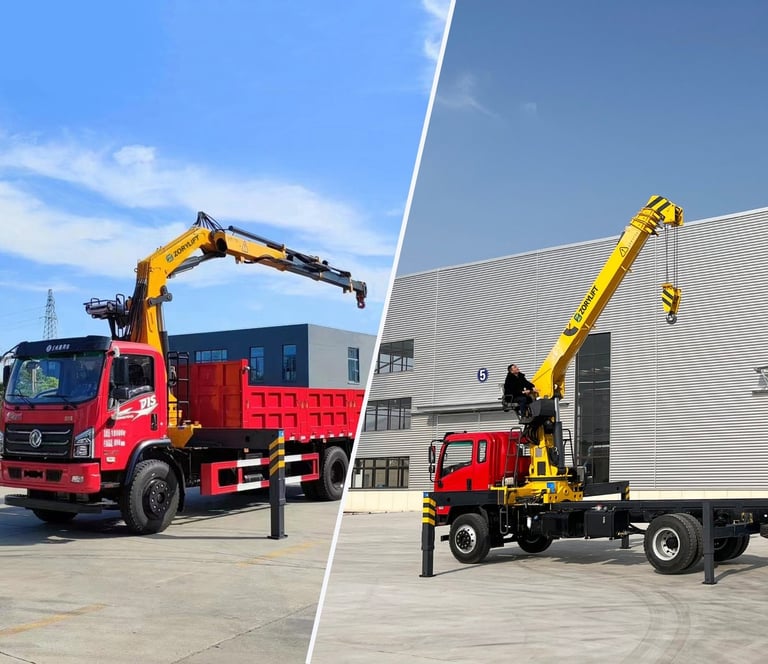

What Types of Truck Mounted Crane?

Truck mounted cranes are primarily categorized into two main types based on their boom design: Knuckle Boom Cranes (also known as articulated cranes or loader cranes) and Telescopic Boom Cranes (often called straight boom cranes).

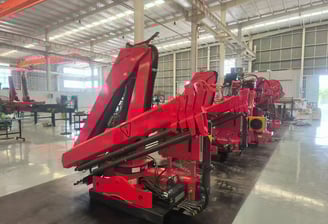

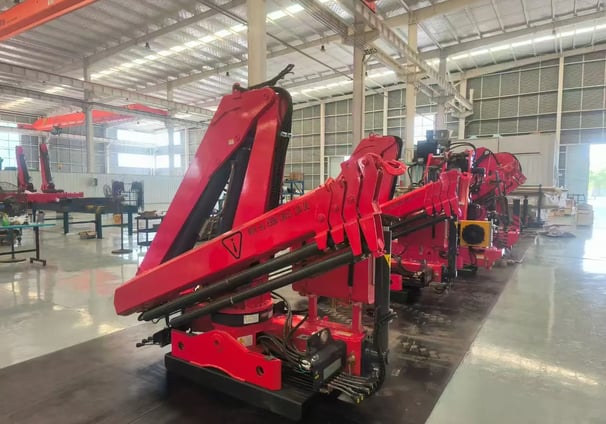

Knuckle Boom Crane (Articulated Crane / Loader Crane)

Characterized by multiple hinged, hydraulically powered sections, resembling knuckles on a finger, this crane folds compactly onto the truck bed. This articulated design offers exceptional maneuverability and precision, making it ideal for working in confined spaces or lifting loads over obstacles. They are frequently referred to as truck loader cranes due to their efficiency in loading and unloading materials.

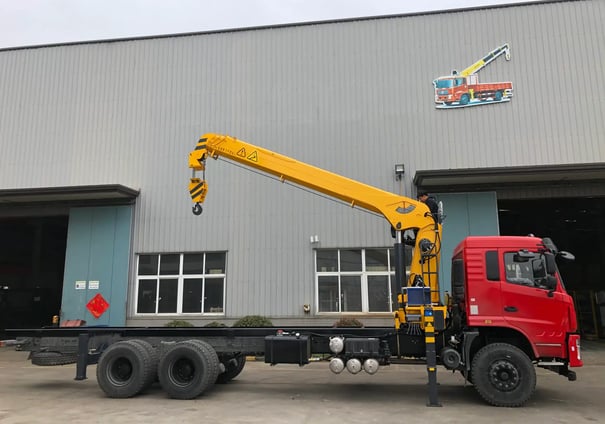

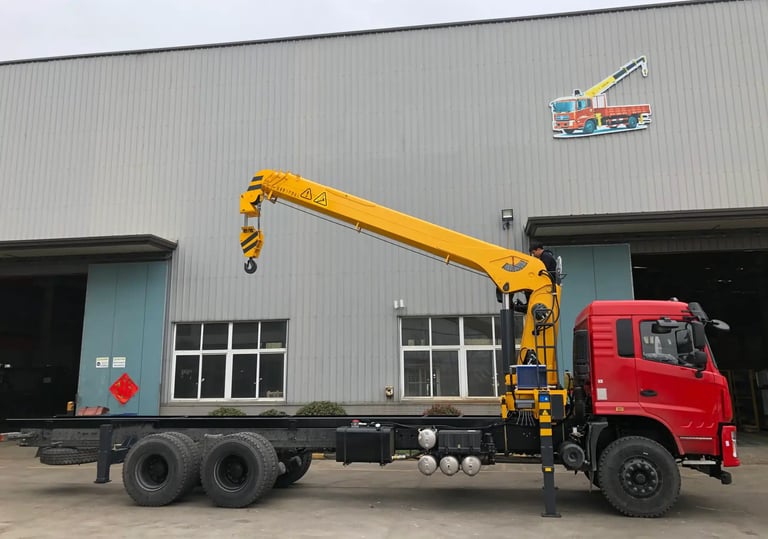

Telescopic Boom Crane (Straight Boom Crane)

This type features a main boom composed of nested sections that extend and retract linearly using hydraulic cylinders. This configuration provides significant reach (working radius) and lifting height along a direct path, making it well-suited for applications requiring long-distance or high-elevation lifts, such as construction erections or utility work. These cranes range from small truck mounted cranes to heavy-duty models based on lifting capacity (e.g., 5 ton, 10 ton).

Frequently Asked Questions

What is a Knuckle Boom Crane?

A knuckle boom crane, also known as an articulating crane, is a highly versatile lifting device. It's characterized by its jointed arm, resembling a knuckle, which allows for exceptional maneuverability in tight spaces. This design makes it particularly well-suited for operation in confined areas such as factories, warehouses, and construction sites.

A knuckle boom crane is primarily composed of the following components:

• Base:Usually mounted on a truck chassis, providing stable support.

• Slewing Mechanism:Enables the boom to rotate 360 degrees continuously.

• Knuckle Boom:Consists of multiple hydraulic cylinders and connecting arms, facilitating multi-angle and multi-directional lifting operations.

• Hydraulic System:Provides power to control the boom's extension, rotation, and lifting.

• Control System:Operators use control valves or remote controls to manage the crane's movements

Can articulated boom cranes be equipped with attachments?

Yes, a major advantage of knuckle boom cranes is their excellent compatibility with attachments. Thanks to the hydraulic design of their articulated boom, knuckle boom cranes can easily be equipped with a variety of attachments, transforming them into versatile work platforms.

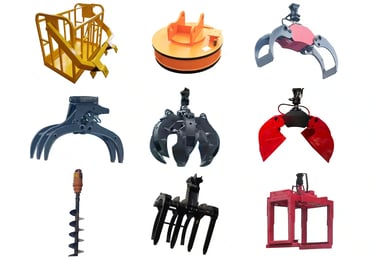

Common Attachments:

• Aerial Work Platform/Basket: Converts the crane into a platform for aerial work, maintenance, etc .

• Grapples: For grabbing various materials like wood, scrap metal, stones.

• Crane Basket: For lifting personnel or tools.

• Auger: For drilling holes, planting trees, etc.

• Winch: For lifting heavy objects below the ground.

How long will it take to receive my truck mounted knuckle boom crane?

Zory loader crane is committed to providing you with efficient delivery service. Our delivery time depends on the following factors:

Availability in Stock:

If in stock, we can usually arrange delivery within 5-7 working days.

Standard Product Manufacturing:

For standard models of knuckle boom cranes, if not in stock, the production lead time is usually around 35 working days. We will do our best to shorten the production time and deliver the product to you as soon as possible.

Customized Products:

If you need special customization or have special requirements (such as adding accessories, changing colors, special environmental applications, etc.), the delivery time will vary according to the specific requirements. Our sales engineers will communicate with you in detail to confirm the customization details and estimated delivery time.

Logistics and transportation time:

International orders have additional logistics and transportation time, and we will choose a reliable logistics partner to ensure the safe transportation of the crane.

Can my vehicle be equipped with a knuckle boom crane?

Generally, the answer is yes! The flexibility of knuckle boom cranes allows them to be adapted to a variety of vehicles and platforms, but to ensure safe and efficient operation, the following installation requirements need to be considered:

Installation Requirements:

1. Chassis Strength:

   • Your vehicle chassis must have sufficient strength and stability to support the weight of the crane and its load. This usually requires chassis reinforcement .

2. Power Source:

   • Knuckle boom cranes usually require hydraulic power. Your vehicle needs to be equipped with a power take-off (PTO) interface to provide hydraulic power to the crane.

   • If there is no PTO, Zory can provide an independent power unit, including:

     • Electric Motor Pump Station: Suitable for places with power supply.

     • Diesel Engine Pump Station: Suitable for places without power supply.

     • Gasoline Engine Pump Station: Suitable for micro trucks, etc.

3. Installation Space:

   • Knuckle boom cranes occupy relatively little space when retracted, but sufficient installation space still needs to be reserved on the vehicle .

   • Zory engineers will conduct an on-site assessment to ensure the feasibility of the installation.
