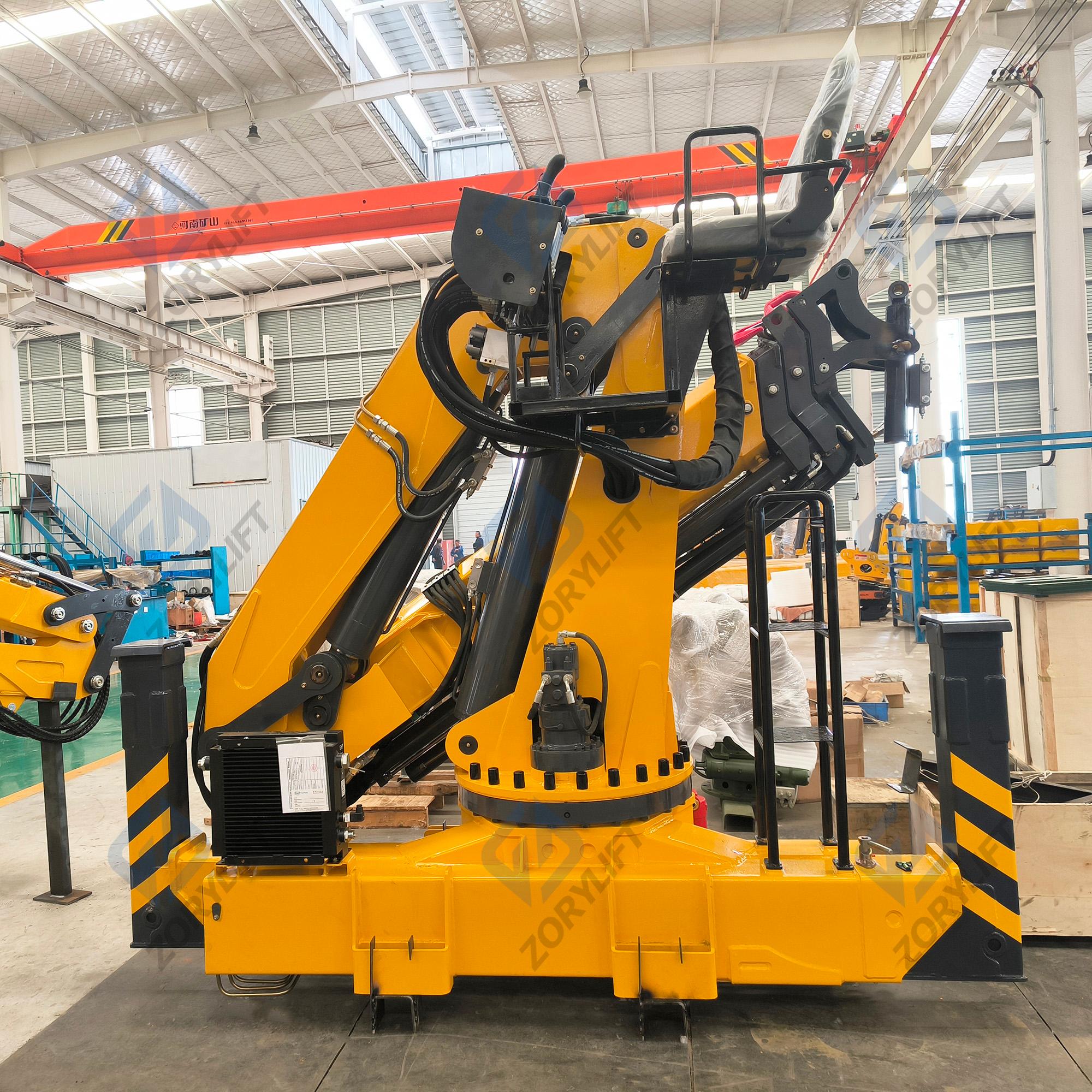

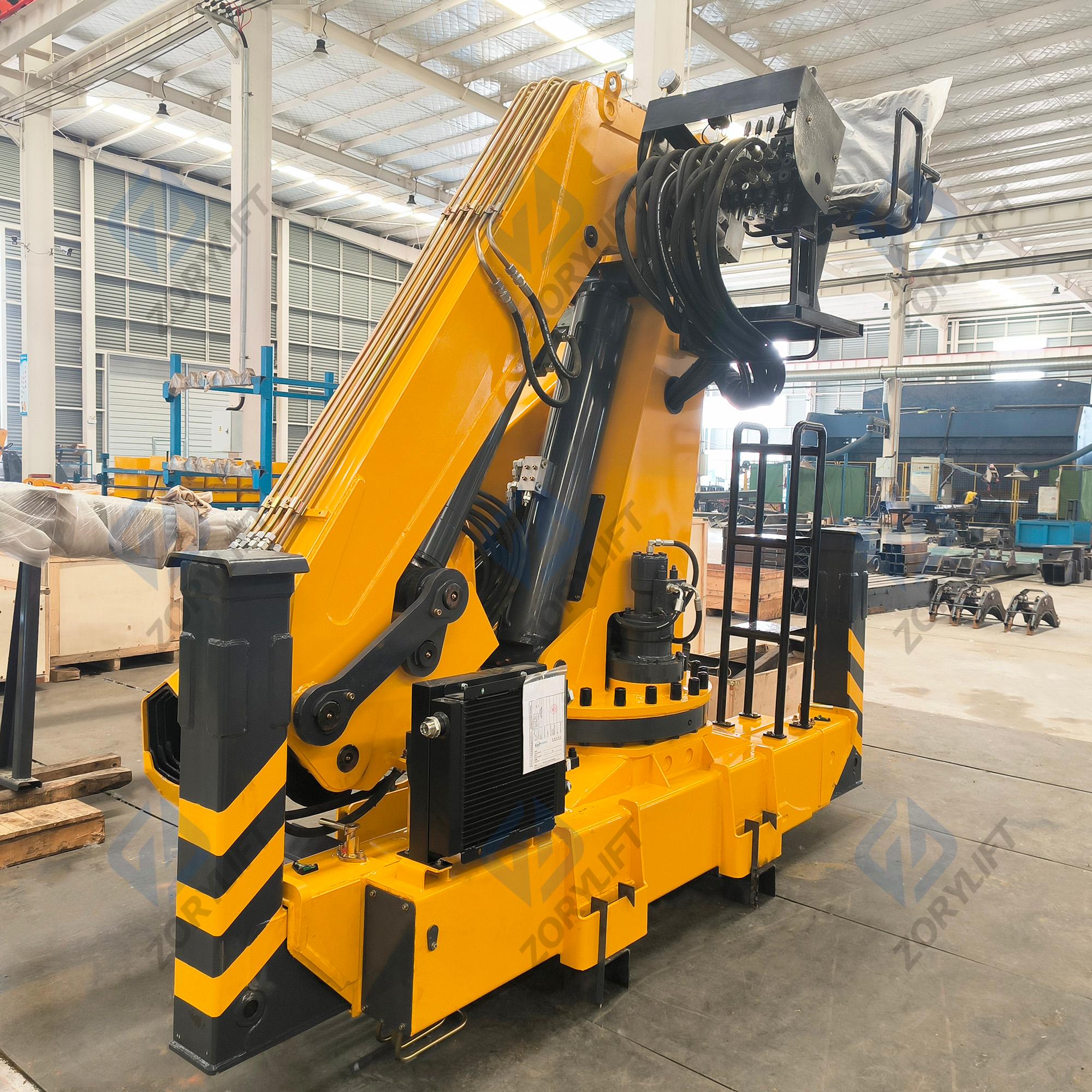

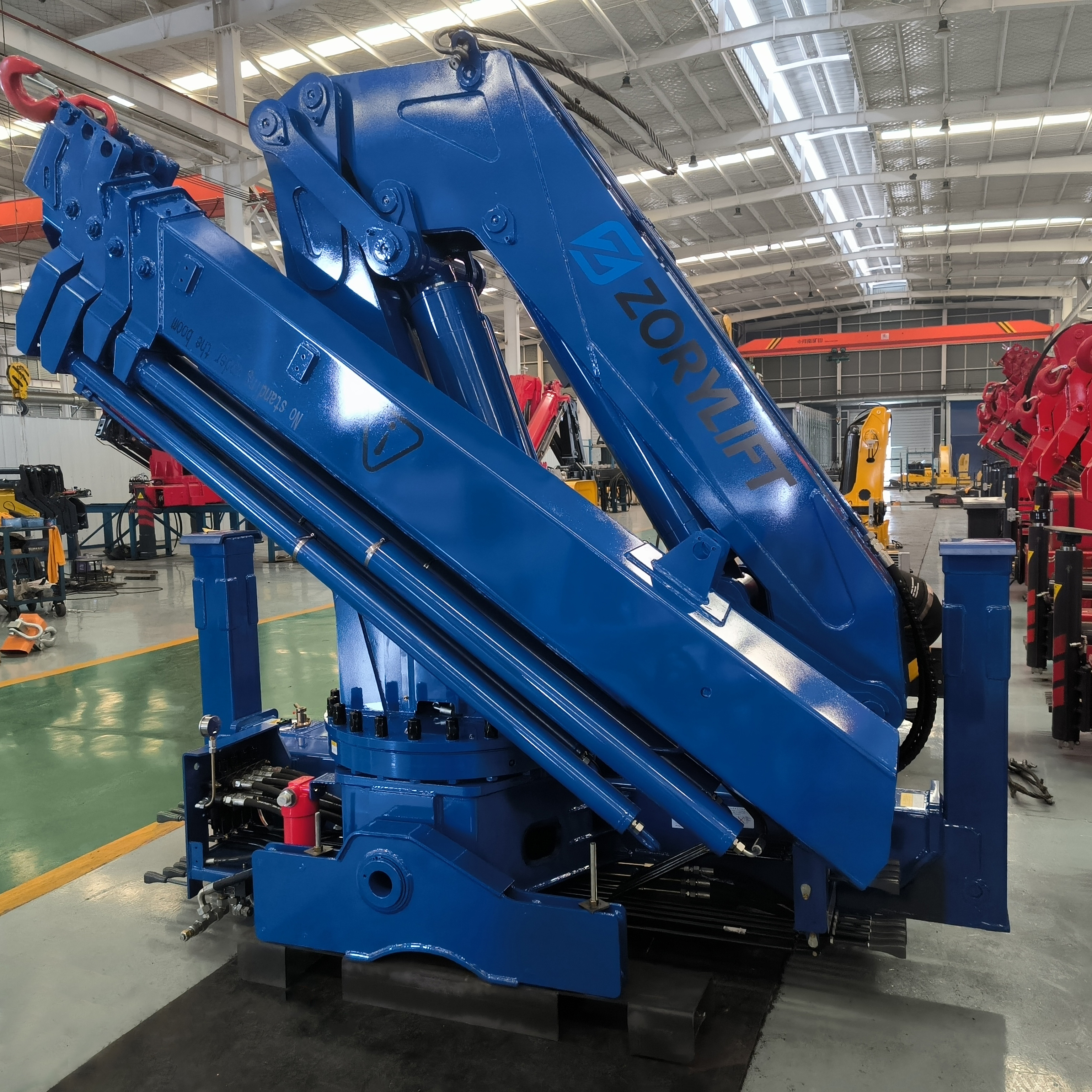

SQZ160 8T Knuckle Boom Loader Cranes
Parameter
Max.Lifting Weight : 8000 Kg
Max.Lifting Moment : 16 Ton.m
Max.Working Radius : 7.85 M or 9.7 M or 11.4 M or 15.7 M
Recommend Power : 30 Kw
Hydraulic System Flow : 45 L/Min
Hydraulic System Pressure : 28 Mpa
Oil Tank Capacity : 150 L
Rotation Angle : 360°Continuous rotation
Crane Self Weight : 2730 Kg or 2970 Kg or 3190 Kg or 3900 Kg
Installation Space : 1200 mm or 1350 mm
Outtrigger Span : 5230 mm
>> SQZ160-2 Crane Technical Parameters
>> SQZ160-3 Crane Technical Parameters
>> SQZ160-4 Crane Technical Parameters
Optional
Customize your crane to work perfectly for your needs. These high-quality options add more safety, better control, and allow you to handle many different types of jobs. Let us help you build the perfect tool for your business.
Wireless Remote Control
Control your crane from a safe distance. The operator is no longer attached to the truck and can stand in the best position to see everything clearly. This greatly improves safety and makes lifting operations more precise.


Load Moment Indicator
Safety is the top priority. The Load Moment Indicator (LMI) is the crane's smart safety system. It watches the load weight in real-time to prevent the crane from tipping over or lifting too much. This system protects your operator, your cargo, and your crane.
Do more than just lift. Turn your crane into a multi-purpose machine with our attachments. Use a grapple to handle logs or scrap metal, an auger to drill holes, or a pallet fork to move materials. One crane can now do the work of many, saving you time and money.
Auxiliary Equipment




Our Partners
We value the strong relationships we've built with our clients. These photos represent just a few of our successful collaborations.









About Us
With over 15 years of ISO-certified expertise from the heart of China's construction machinery capital, we build truck loader cranes engineered for performance and reliability. Discover the power of true manufacturing excellence.


















Related Products
Get Factory-Direct Pricing
As a manufacturer with over 15 years of experience, we eliminate middlemen to offer you superior cranes at a more competitive price. Complete the form for a transparent, no-obligation quote.
